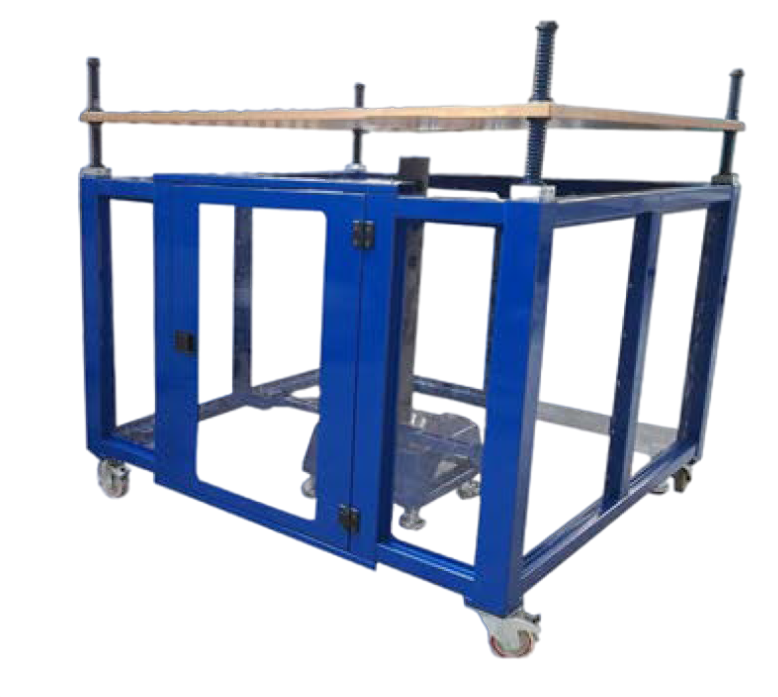

Pyroshock Test System


System Features

  • Steel construction body
  • Resonance plate
  • PLC controlled impact hammer
  • Interchangeable bullet sizes
  • Interchangeable sacrificial plates
  • System Dimensions: 1.510 x 1.510 x 1.245 mm
  • Weight: 470 kg


Technical Specifications

Line Pressure: 5.5 - 8 bar

Max. Firing Pressure: 6 bar

Working Temperature: 0 ° C to + 50 ° C

SRS Minimum: 100 Hz / 100g

SRS Maximum: 10 kHz / 10,000g


  • With the system, SRS tests of the parts used in the aviation and space industry are carried out safely in accordance with the standards.
  • High repeatability is ensured in the tests performed with the system.
  • Data acquisition system and accelerometers are not included in the product.
  • Recommended factory acceptance test criterion: The system will provide 100 Hz: 50g, 4 kHz: 4000g SRS profile with 15 kg test sample with + -6 dB tolerance values.
