WeLog is a connected and scalable AI Edge Development Platform designed for real-time data processing, sensor integration, and AI algorithm deployment. It serves as a flexible hardware platform for custom software development and application distribution across various industries. Equipped with powerful edge computing capabilities, WeLog can fuse sensor data (such as camera imagery and IMU signals), localisation data (including GNSS signals), and in-vehicle network data (such as CAN bus messages) in real time.

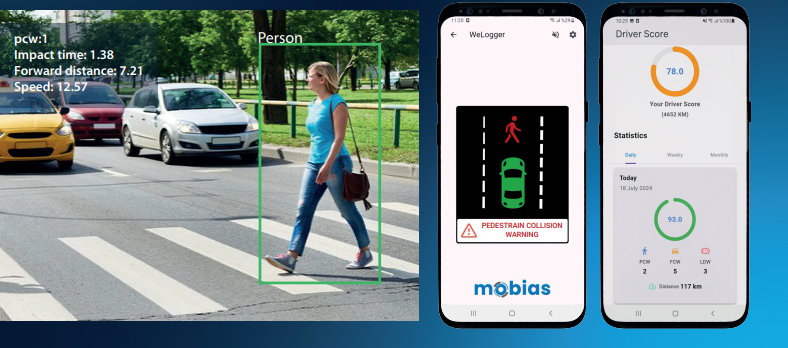

As an example of its versatile applications, WeLog can be retrofitted into vehicles to provide ADAS warnings, detect road surface defects, and communicate critical data through V2X technologies to mobile devices and infrastructure. The processed data can be transmitted to the cloud or local servers depending on user requirements.
WeLog General Specifications

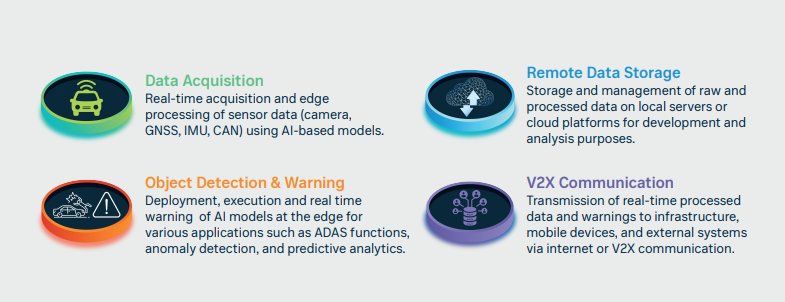

Supported Functions
Real-time multi-sensor data acquisition
AI algorithm deployment and execution at the edge
Customizable data processing pipelines
Multi-camera support and real-time video streaming
Time synchronisation across devices, ADAS warning generation (optional use case)
Road surface anomaly detection (optional use case)
V2X communication with mobile devices and infrastructure
Remote device configuration and software update via mobile app
Data logging to local storage or transmission to cloud/local servers
Tech Specs
Micro-SIM, MicroSD card (max 512GB)
1080p 30fps image recording
Real-time video streaming
CAN-Bus message logging OBD-II and J1939 connection (optional)
LTE Cat 4 module GPS 3m precision, IMU with 6 DOF
Supply Voltage: 9-30V DC (20W)
Interfaces: 2 × CAN, 2 × USB, 2 × Camera
Wi-Fi and Bluetooth 4.2 BLE
Use Case
Development hardware platform for new ADAS ideas
Development hardware platform for in-vehicle edge solution
Data collection device as also vehicle independent applications
Solution

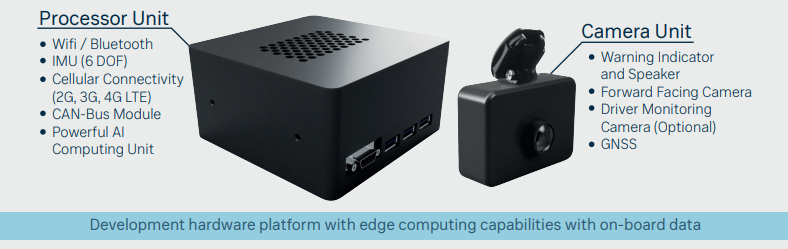

AI capable hardware, with CAN Bus, GNSS, camera and LTE capability
Provides a hardware platform to develop your software
Pedestrian, forward collision, lane departure warning software included
Already have your own software or need hardware support to develop one? Enhance your solution with the WeLog hardware platform. The customer-tailored demo is available anytime.
